Hypertrophy Vs Enlargment¶
Atrial Enlargment¶
- P wave size in Lead 2 => tall or Wide
- P wave axis
- Leads V1 changes

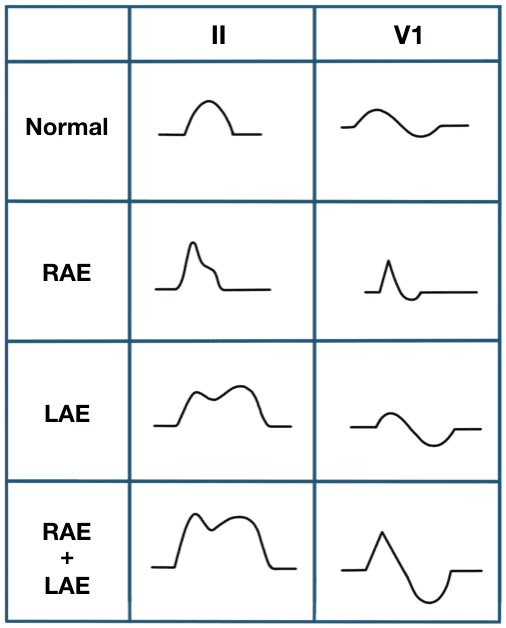

Right vs left atrial enlargment = V1 & Lead 2 P waves¶
| normal | Right Atrial hypertrophy | Left atrial hypertrophy | |
|---|---|---|---|
| P wave in Lead 2 | tall p wave | R atrial depo-notch- L atrial depol | |
| V1 | R.A up-spike then down spike from L.A | large Upspike as R.atrial hypertrophy - normal L.A | Normal upspike - large down spike on after R.atrial depol |
Ventricualr Hypertrophy¶
- moniter QRS in V6,V1 for QRS cahnges
- Deep S wave hypertrpohied ventricle
- large Q-R time
Diagnse LVH¶
Sokolow criteria - S wave of V1 + R wave of V5-V6 >/ 3.5mv (35mm) OR R wave in V5-V6 >2.6mv (26,,)
